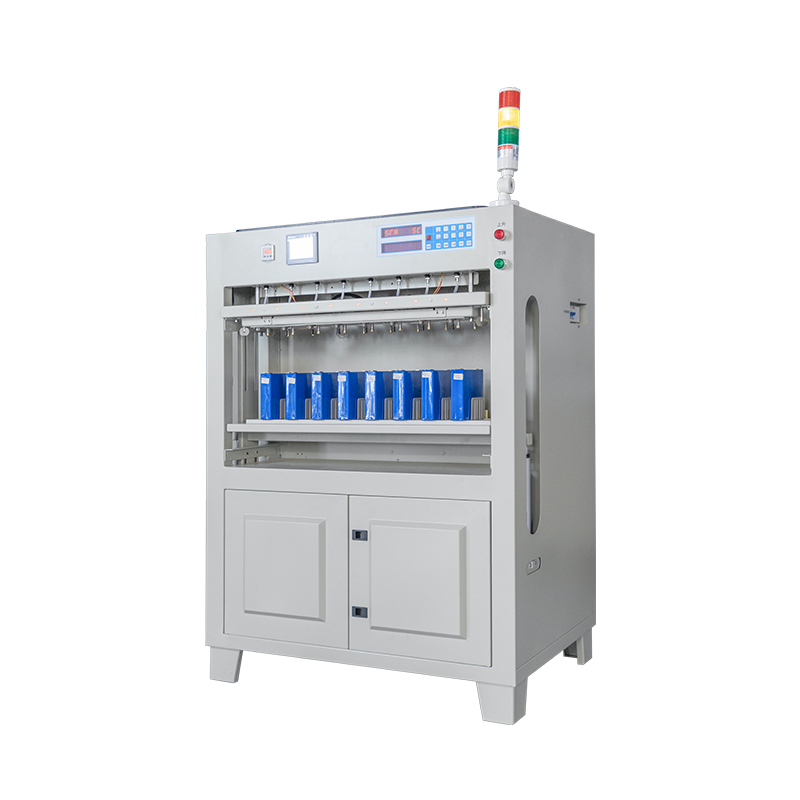

F37-8-30A Negative Pressure Formation Equipment for Power Batteries
Breakthroughs in Core Technologies
- Negative pressure formation system: A vacuum environment that can be adjusted from -90kPa to 0kPa to improve the uniformity of electrolyte infiltration.
- 8-channel independent control: Each channel is equipped with an independent constant current and constant voltage source, supporting large current charge and discharge of 40A.
- Four-wire impedance detection: Real-time compensation for contact resistance errors, with a voltage accuracy of ±(0.5‰ of the reading + 0.5‰ of the full scale).
Performance Advantages
- Efficient Energy Management
The
Lithium Ion Battery Tester features high - efficiency charging and discharging capabilities. The charging efficiency of the Lithium Ion Battery Tester is ≥ 80%, and the discharging efficiency is ≥ 70%, saving more than 30% of the annual electricity cost.
The bidirectional inverter technology enables the feedback of electrical energy to the power grid.
A wide current range of 40A (80mA - 40A) meets the testing requirements of fast-charging batteries.
With a control resolution of 1mV/1mA, it supports parameter adjustment at the micro level.
- Smart Production Adaptation
It supports the programming of complex processes with 32 working steps / 256 cycles.
Automatically generates a three-dimensional curve of voltage - capacity - time.
It has seamless docking with the MES system to achieve traceability of production data.
Differentiated Design
Compact Model: With a small volume of 1100×650×1300mm, it saves 60% of the factory space.
Negative Pressure Stability: It can stably maintain a vacuum degree of -80kPa, improving the consistency of
Battery Formation.
Modular Maintenance: The fixtures, constant current boards, and negative pressure suction nozzles support quick replacement.
Technical Parameters
· R & D and testing of power batteries
· Small batch production of end batteries
· Performance verification of battery materials
· Development of batteries for special environments
Battery Formation Equipment offers efficient solutions for the R & D and production of power batteries through negative pressure formation technology, high - precision control, and a compact design. It supports a 72 - hour rapid response service and lifetime software upgrades to ensure the continuity of R & D and production.
