Lithium Ion Battery Tester

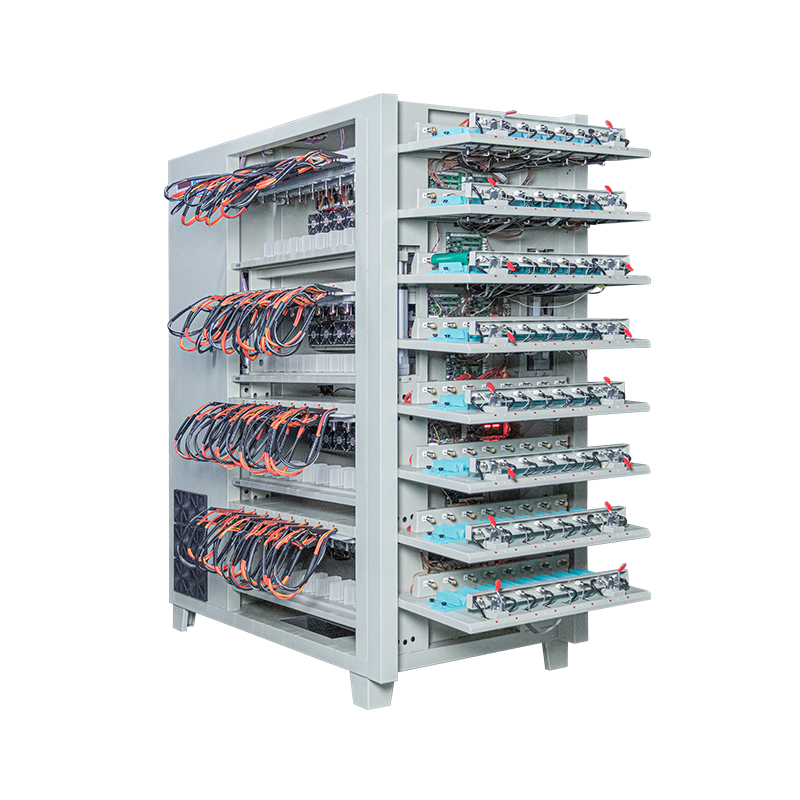

S37S-64-60A Energy Efficient and Regenerative Sorting Device

Device Description

The high-tech Battery Tester For Lithium Batteries is designed for testing cylindrical, prismatic, and polymer lithium ion batteries. It is equipped with a 64 channel independent control system and an ultra high current testing range of 120mA to 60A. It is an energy regenerative testing device that accepts cylindrical batteries from a diameter of 32-60mm and a length of 80-200mm, prismatic batteries from a length of 80-220mm, a thickness of 20-70mm, height of 80-220mm and a tab spacing of 60-150mm with custom polymer batteries. It can be utilized in power battery manufacturing, energy storage system testing, and research institutions.

Core Benefits

Energy Efficient

The Battery Charge Discharge Tester utilizes third generation energy regeneration technology to achieve a discharging efficiency of 70% and charging efficiency is 80%. Energy is fed directly back to the grid, thus reducing power consumption costs by 30% overall. Power factor ≥0.99 which meets industrial green production.

Accurate testing

Voltage accuracy is ±(0.5‰ reading + 0.5‰ full scale) Current accuracy is ±(0.5‰ reading + 0.5‰ full scale). The four-wire testing interface eliminates contact resistance.

Intelligent safety protection

There are 13 levels of safety protection, which includes reverse connection, short circuit, and over-temperature. Each abnormal channel will be automatically isolated with a tri-color light warning. The data security is ensured by a triple power-off protection mechanism.

Technical Specification

Applications

In power cell production, Battery Charge Discharge Test Equipment enables 60A high current testing to test fast charge performance.

Energy Storage System Integration: able to support consistency testing for batteries of over 100Ah.

Battery Research and Development: with high-precision data acquisition and complex step programming.

Battery recycling, ability to determine the remaining capacity and health status of end of life batteries with expedited evaluations.
