18650 battery charger and tester

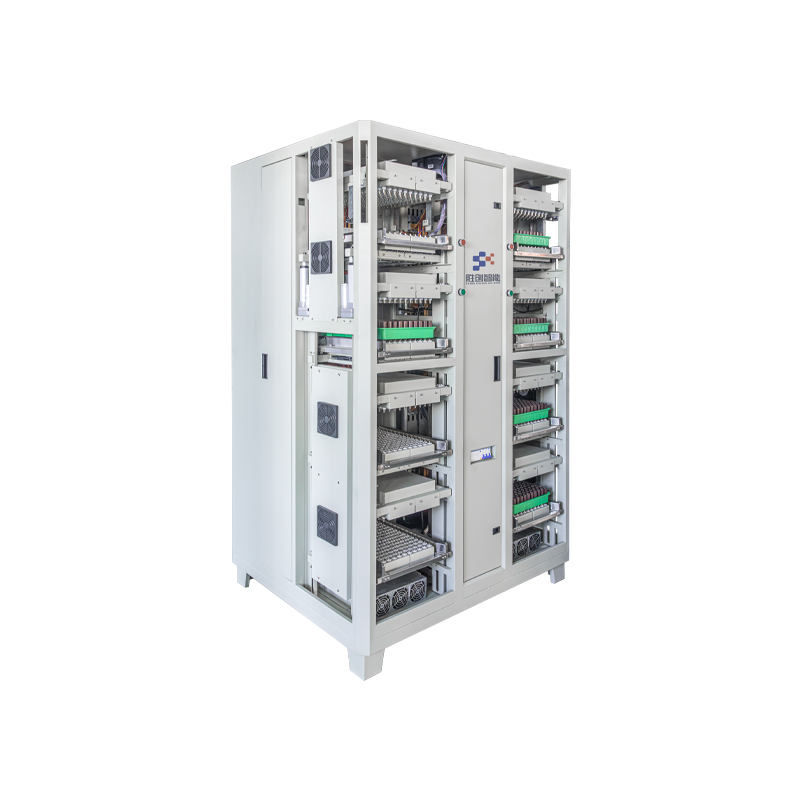

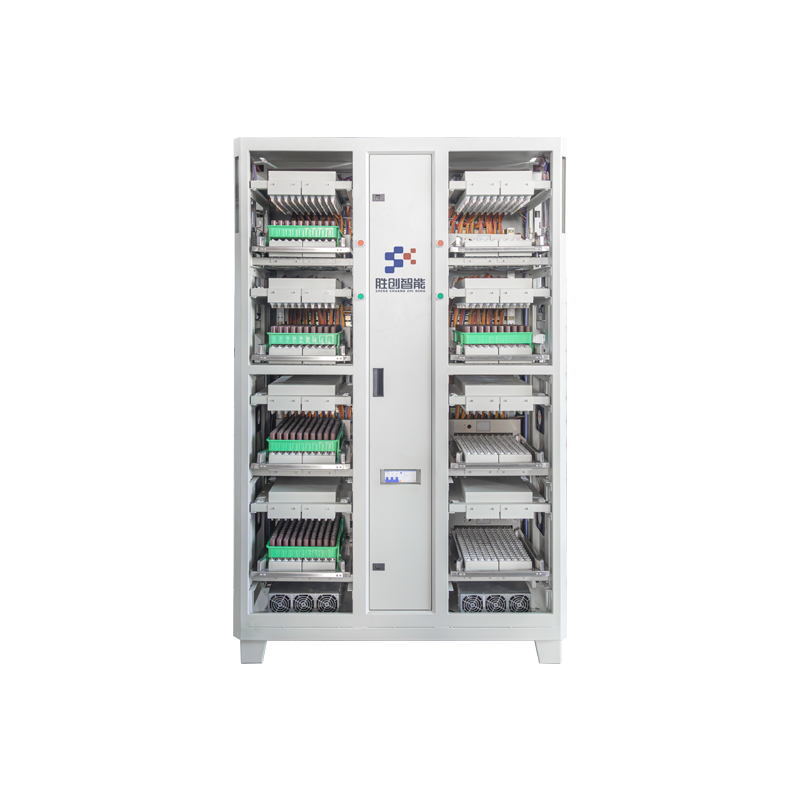

The Pin Bed Cylindrical Battery Formation and Capacity Grading Equipment is an energy saving and efficient Battery Charge Discharge Tester. It is mainly used for testing the parameter of voltage, capacity, etc., during the battery formation and capacity grading, and then classify the battery according to test results and perform data analysis. The equipment uses an STM32 microcontroller, and can be connected to a computer to save testing data and curves, or keyboards to complete testing and sorting operations. Its four-wire test interface is used for high-accuracy measurement, and it has a power-off protection function and can work again after power back. The equipment uses a pin bed auto mode, which has two trays and each layer can store 160 cells per tray, and the total storage amount can reach 1280 cells in double-row four-layers. The equipment consumes 40% less electricity than traditional equipment in charging, and the comprehensive energy saving rate is over 60%, save much electricity costs and expenses for battery manufacturers. In addition, the equipment provides a graphical operation interface, using a display to intuitively display the data voltage, current, time, and capacity of each battery, and different colors can display working states or abnormal states, so the operation is simple during operation and maintenance.

High efficiency and energy saving: In charging, it consumes over 40% less electricity than traditional equipment, and the electrical energy-saving rate is over 60%, which can significantly reduce the cost of production. High precision measurement: With a four-wire test interface, and the voltage and current accuracy of better than ±(0.5‰ reading + 0.5‰ full scale), which can assure the accuracy of the test data. High degree of automation: Another advantage is the pin bed auto equipment mode with double row, four layers, and design can get hold of 1280cells, and provides a high degree of takeover of an automated process and multifunction to enhance the efficiency of a battery formation system.

Mass production environment: The 1280-channel design and auto loading function of the Pin Bed Cylindrical Battery Formation and Capacity Grading Equipment can handle a large number of batteries processing efficiency and thus significantly increase production efficiency and reduce labor costs. In addition, with energy savings for potential running cost reduction, it is suitable for large battery productions. As an efficient Battery Charge Discharge Test Equipment, it also ensures consistent performance of each battery.

 R&D and Testing Laboratory: The high precision of the measurement function, voltage and current accuracy of ±(0.5‰ reading + 0.5‰ full scale) with many flexible modes (constant current, constant voltage, constant current and voltage) to ensure accurate data for R&D.The software allows for the recording and storage of detailed analyzed test data and data formats, promoting the R&D process. As a sophisticated Lithium Ion Battery Tester, it is validated for research and development (R&D) precision testing toward predictive performance measures of the batteries.

Quality Control & Screening: The tester will continuously monitor batteries, stopping and alarming in the event of an abnormality, coming to the success of no defective batteries entering downstream departments. It will categorize batteries by various categories (capacity, time, open-circuit voltage!) accurately screening batteries that satisfy the specification. As an accurate lithium-ion battery capacity tester, it will ensure every battery exceeds the capacity standard, thus better compete in the product market.
