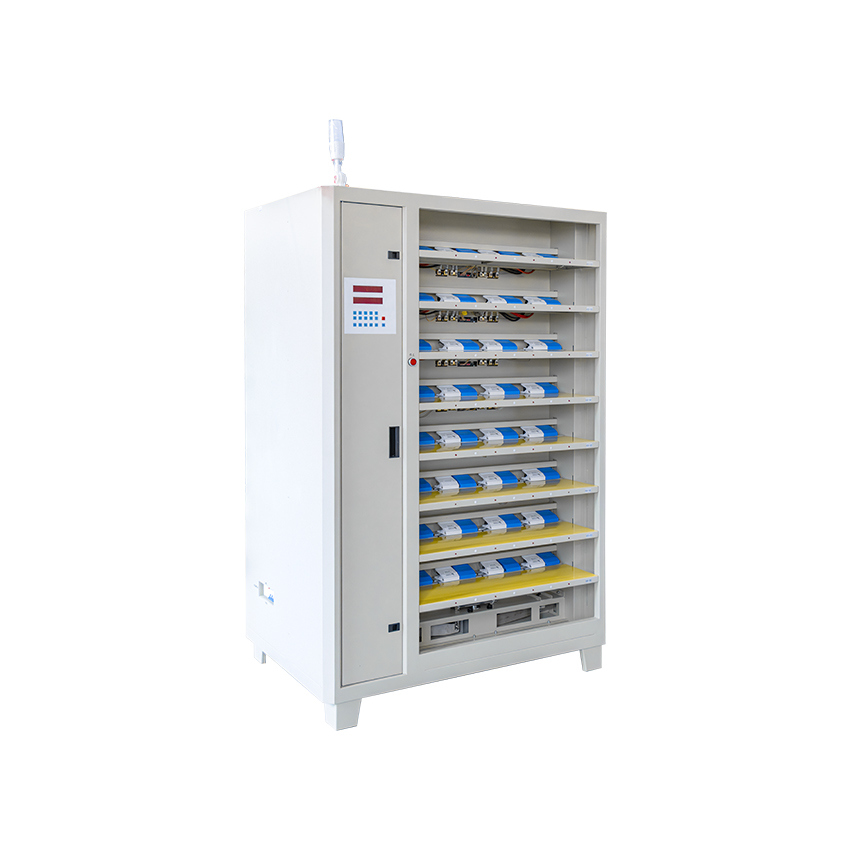

The ODM-S34-32-100A Energy-Saving Feedback Capacity Sorting Cabinet, an ODM Cell Grading Machine, serves the purpose of testing the capacities of lithium-ion batteries during the Battery Formation/sorting stage, and may also test and grade parameters, like voltage and capacity. This equipment is controlled by a STM32 single chip microcomputer, and has 32-channel independent constant current/constant voltage sources, and four-wire high precision measurements and energy feedback technology are used. The electric energy that is discharged can be fed back to the grid. Power-off protection and multiple abnormal protection functions. The software can set 32 working steps and 256 cycles, generates data reports and curves, is compatible with various battery specifications, and adopts a modular design for easy maintenance. This machine is suited for automated grading detection of lithium iron phosphate batteries, providing energy efficient and accurate ODM solutions for battery manufacturing.
- Provides a graphical operation interface for intuitiveness.
- Real-time detection and display of the status of each battery.
- Power transistors utilize field effect transistors for proper use with battery low voltage delivery after discharge.
- The equipment has a power-off protection function, and no data is lost after the switching is off, and the equipment can continue to proceed in accordance with the workflow and settings before they shut off power to the equipment.
Equipment Structure
- Number of channels: 32 channels total.
- Chassis color: standard gray white/gray-black (custom).
- Fixture Type: blue-white 150 split fixture.
- Fixture Spacing: spaced at 200mm between batteries.
- Loading method: pneumatically clamping, and manually placing the batteries.
System Composition
- Lithium-ion battery pack for devices.
- Computer system with USB interface provided by the user.
- USB to 485 interface converter and communication cable equipment (or TCP communication).
- Battery scanner equipment.
- Product software.
Software Functions
- Mode of Control: Able to control the equipment from the computer level and control equipment cabinet wide and applying to the scanning system of the cabinet for the equipment -.
- Communication Mode: 485 serial port communication (running at a baud rate of 57600) or TCP communicating.
- Process Setting: Can set up to 32 working steps in turn and total of 256 cycles to all at one time.
- Charge Modes: Constant current mode and constant a constant voltage mode and constant current-constant voltage mode, -
- Charge cut-off conditions: based on meeting these separately or in parallel of voltage, current, time, capacity, -△V
- Discharge Modes: Discharge at constant current mode; work at constant power; work at constant resistance.
- Discharge cut-off conditions: we will work based with conditions based on meeting separately or in parallel voltage, time, capacity less than or equivalent threshold limits too.
- Software Functions Are: - Able to communicate with equipment through software-based communication via network protocols - Ethernet-and USB while print paper summary reports too.
